Making Use of Digester Gas Energy


Within the framework of the energy transition, digester gases from sewage treatment plants and waste recycling plants
are becoming increasingly important.

The gas analysis component of the related plant technology plays an important role both for process monitoring and for safeguarding the plant components operated with the digester gas. The INCA gas analyzer technology from UNION Instruments is specially tailored for this.


  Mechanical / Biological Waste Treatment Plant     The INCA gas analyzers

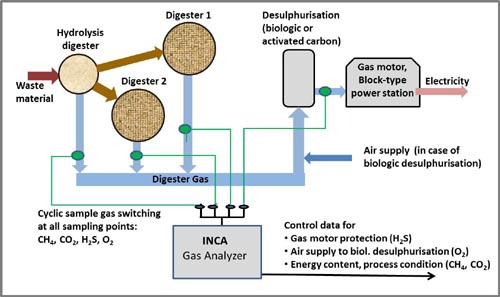

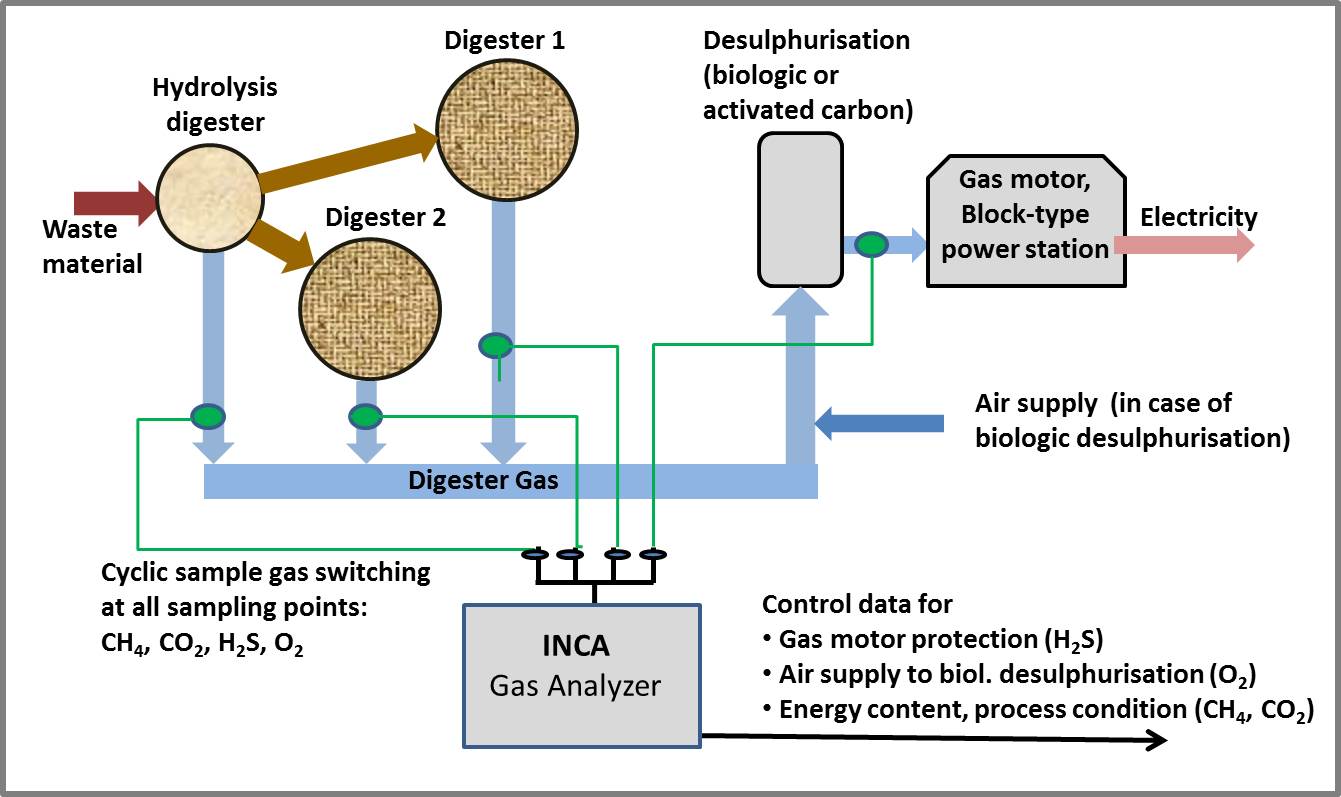

Typical gas analysis configuration
in a mechanical/biological waste treatment plant with four measuring points for one analyzer
The INCA gas analyzers
are extremely well-suited for determination of highly fluctuating concentrations of H2S, such as in digester gas.

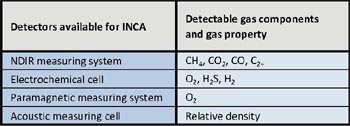

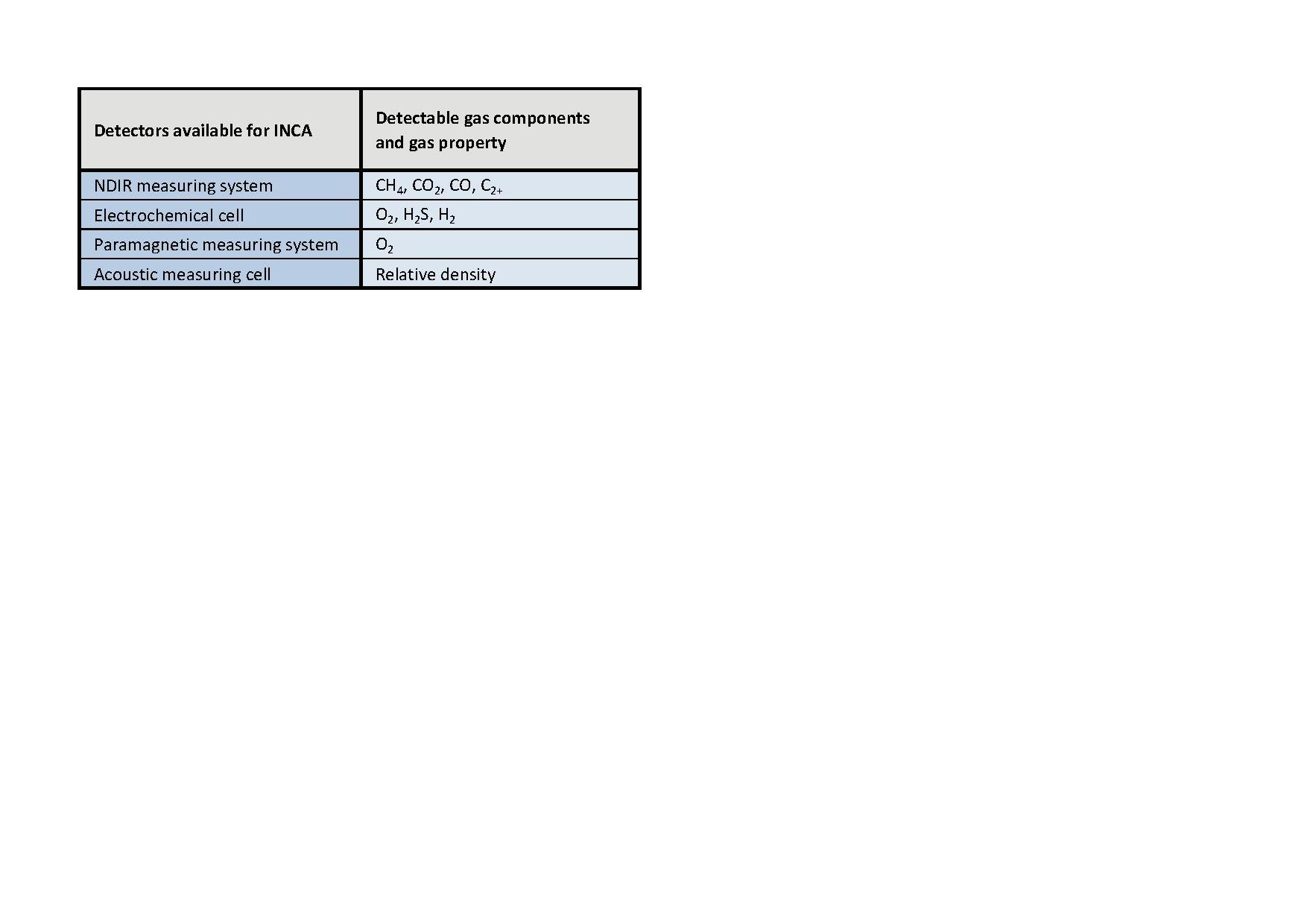

INCA is a modular multi-component gas analyzer
that can be flexibly configured with special orientation to analysis of natural gas as well as biogas and digester gas. It consists of modules for sample gas feed, sample gas conditioning, sensors (using different detection methods), control, and data processing, from which an analysis system tailored to the specific application is configured – for inside or outside installation or operation in hazardous areas.

Finally, available options
include a measuring gas cooler and an automatic measuring point switchover for up to 10 measuring points.

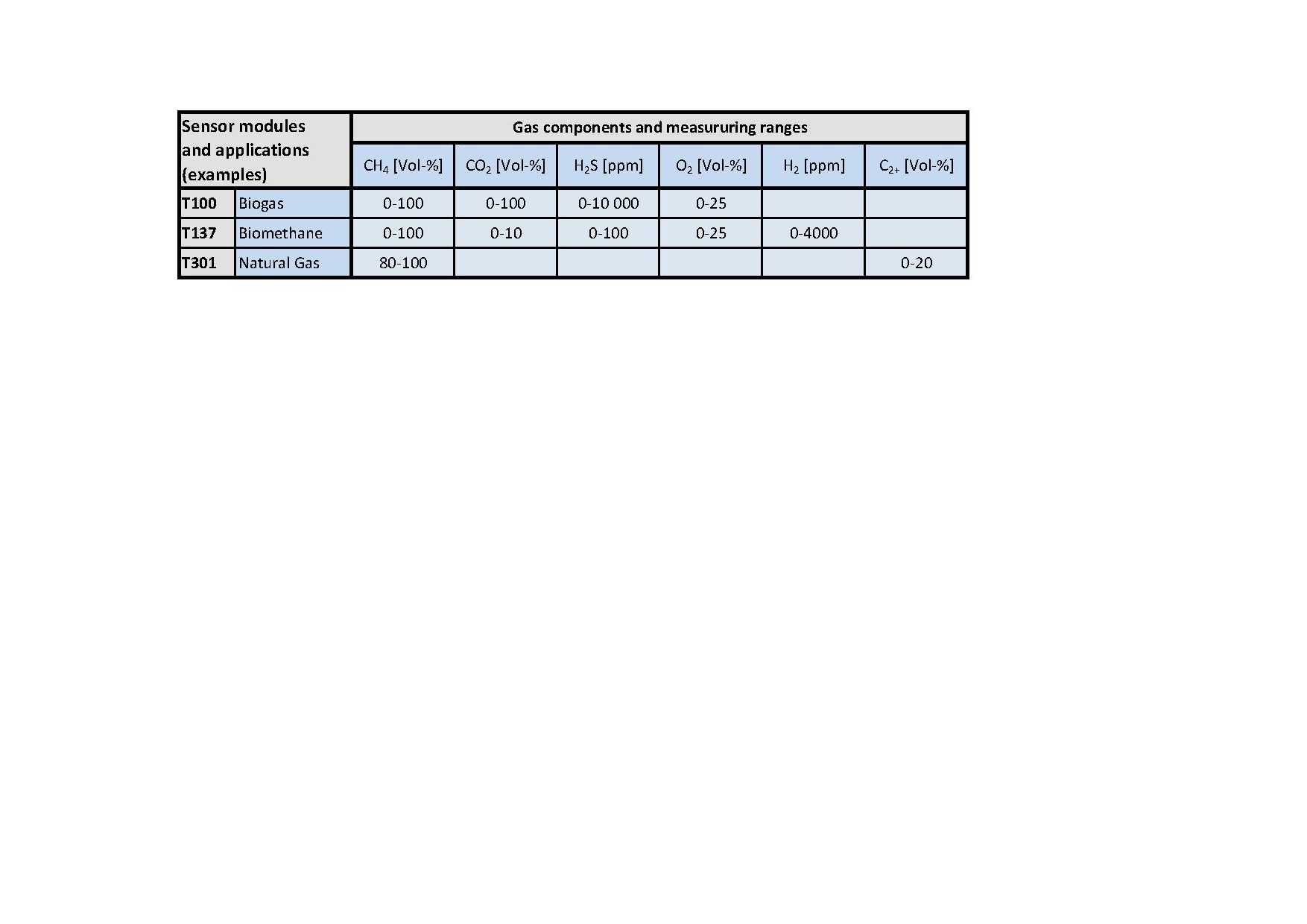

For analysis of digester gases in particular but also for all other applications, the patented sensors provide robust H2S measurements over a long time period in the concentration range of less than a few ppm to 10,000 ppm.






Technical Article Union Instruments February 2016
